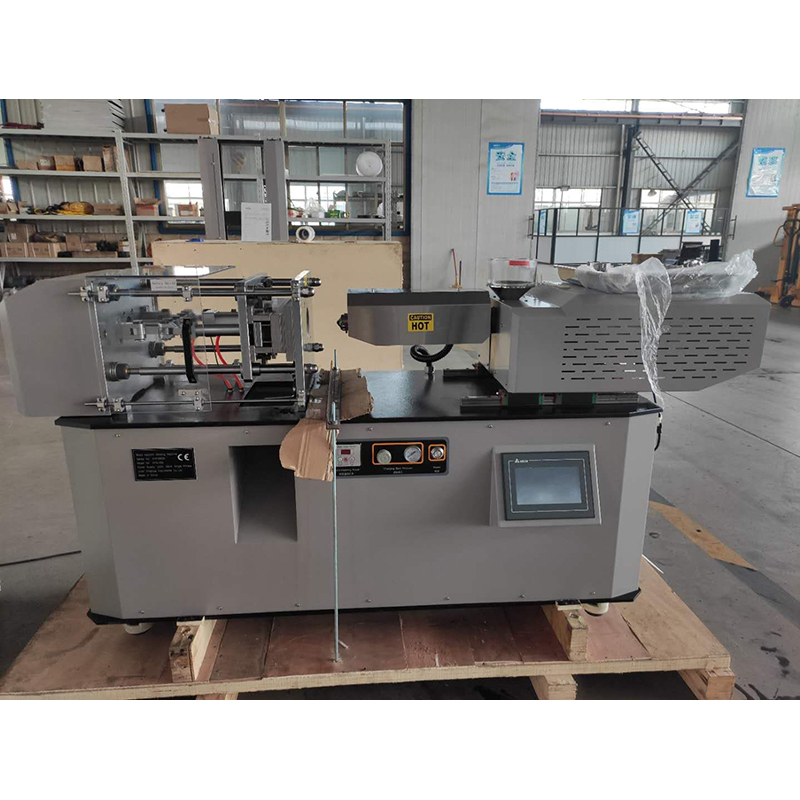

Laboratory/micro/mini injection molding machine

Electric + pneumatic convenient production

Concact Us Now

Description

Reviews

Machinery details:

1.This machine has been miniaturized and improved for the production machine, with small size and strong mobility, suitable for classroom teaching and the production of small samples.

2.The machine includes mold opening and closing parts, sol injection parts, fuselage, heating system, control system and feeding device. Has a simple structure,

3.It is easy to operate, no noise and no pollution; it adopts 220V voltage and can be used in any place with electricity, not restricted by industrial electricity.

Machine Features:

1. Adopt small molds, convenient production, reasonable cost and convenient replacement

2. AC220V + pneumatic control + planetary servo system, no oil, no power and electricity, small size

3. PLC man-machine interface (color touch screen), one-click operating system, simple operation and convenient maintenance

4. The use of mechanical and electronic dual protection devices to ensure safety.

Technical Details:

The main Technical Details	specification
Feeding torque	105 NM(Servo Motor+Reducer)
Air Pressure	≥ 0.8Mpa
Injection range	0-80mm
Screw Speed	1-130rpm
Open stroke	Around 82mm (Not Including the mold)
Injection Force	Around 1.8T
Max Injection weight	30g.
Clamping Force	6T
Max temperature	1-2-3 Zone 360°C
Temperature control range	±0.5°C
Power/full load power	Singe AC 220V ±10%；50HZ,2200W;10A
Screw Diameter	25mm
Fixed mold ring outer diameter	50mm
Tie Bars	210*196mm
Mold size	3609072mm
Machine size	5805801700mm
Packing Size	17507201280
Using for Material	PP,PE,PA,PVC,ABS,TPU,PLA etc
Machine weight(GW/NW)	420/380kg
Main Part	PLC:Delta(Taiwan) SSR:OMRON(Japan)Reducer:Sonko(Taiwan)
